How to Prepare Natural Astaxanthin Powder？

Astaxanthin is a fat-soluble pigment [1] that is reddish-orange in color. It is widely found in crustaceans such as shrimp and crab, and is also an oxygen-containing derivative of carotenoids [2]. In general, a special structure tends to produce special biological functions. A large number of studies have shown that astaxanthin has many physiological activities, such as effectively scavenging free radicals in the body, anti-aging [3], anti-tumor [4], preventing cardiovascular and cerebrovascular diseases [5], cardiovascular diseases [6], protecting the liver [7], anti-diabetes [8], etc. In addition, astaxanthin is a carotenoid that can penetrate the blood-brain and blood-retina barriers, and has a positive effect on improving the central nervous system and brain function [9].

1 Preparation method of natural astaxanthin powder

1.1 Organic solvent extraction method

A large number of studies have shown that acetone has a better effect on the extraction of astaxanthin, because it contains a carbonyl group that is highly similar to astaxanthin. Compared with organic solvents such as methanol, ethanol, and acetonitrile, acetone has the highest recovery rate for astaxanthin extraction [10]. In addition, Sachindra et al. found that a mixed solvent (isopropanol:hexane volume ratio = 1:1) has a higher extraction rate for astaxanthin than a single organic solvent [11]. However, organic solvents such as acetone have the characteristics of low boiling point, volatility, and moderate toxicity, which may pose food safety risks in food processing.

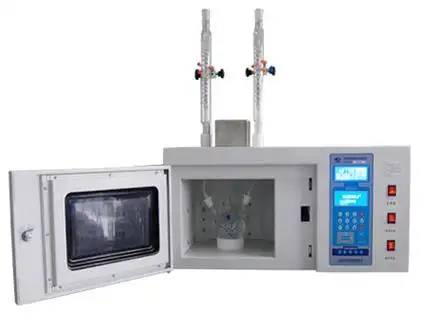

1.2 Microwave-assisted extraction

Microwave-assisted extraction is a new type of extraction technology developed on the basis of traditional organic solvent extraction. Studies have shown that the extraction of astaxanthin from Haematococcus pluvialis using microwave-assisted extraction is an economical and effective method. Microwaves can be transmitted through the microalgal biomass, increasing the intracellular kinetic energy and causing the liquid particles to vibrate. The subsequent increase in cell temperature and cell wall pressure leads to cell lysis. In addition, the microwave-assisted process can shorten the extraction time by breaking the chemical bonds between the molecules of the extraction solvent and promoting the dissolution of ions through the pores in the cell matrix [12]. The microwave-assisted technique can not only improve the extraction efficiency of astaxanthin, but also increase the extraction rate.

1.3 Ultrasonic-assisted extraction

Ultrasonic-assisted extraction is a modern technique for the efficient recovery of astaxanthin from Haematococcus pluvialis. Ultrasonic waves cause cavitation, which rapidly destroys cell walls and enhances the transfer of the extraction agent in the cell matrix [13]. The power of the ultrasonic waves, the temperature and the concentration of the solution are the key parameters for the extraction of astaxanthin. Zou et al. achieved an astaxanthin yield of 27.58 mg/g from Haematococcus pluvialis biomass using ultrasonically assisted extraction under the following conditions: 200 W ultrasonic power, 48% ethanol/ethyl acetate (liquid-to-solid ratio 20:1), 41.1 °C temperature and 16.0 min extraction time.  1 °C, extraction time 16.0 min. Under these conditions, ultrasonic-assisted extraction was used to achieve an astaxanthin yield of 27.58 mg/g from Haematococcus pluvialis biomass [14].

1.4 Enzymatic hydrolysis

Natural astaxanthin exists in three forms: free astaxanthin, astaxanthin monoesters and diesters. The main form is the more stable astaxanthin lipid, i.e., astaxanthin monoesters and diesters [15-16]. The methods for deglycerolizing astaxanthin esters are saponification and enzymatic hydrolysis. In order to evaluate the relative efficiency of enzymatic and saponification on the demethylation of natural astaxanthin esters, Su et al. found that the use of cholesterol esterase can completely hydrolyze astaxanthin esters, and its degradation and isomerization are significantly reduced [17].

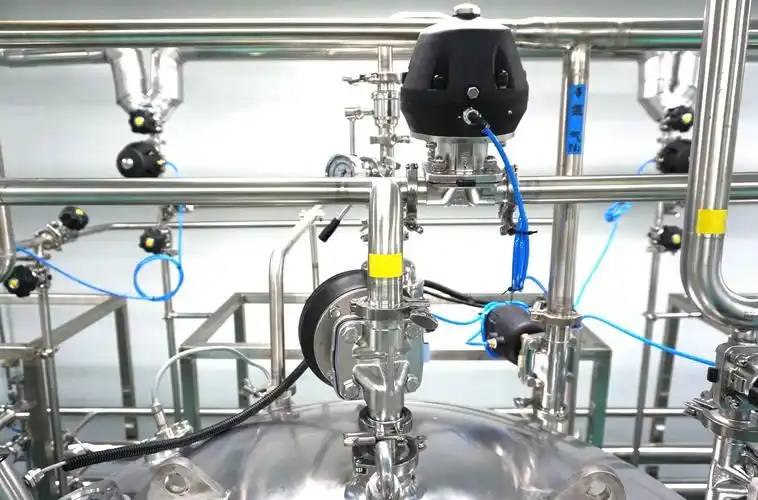

1.5 Supercritical fluid extraction

Supercritical fluid extraction involves using supercritical CO2 as an extraction solvent to contact the raw material containing astaxanthin. The optimal conditions for extracting astaxanthin are obtained by adjusting different extraction parameters (temperature, time, pressure, additives, etc.). Supercritical CO2 extraction can be used to maximise the retention of the biological activity of astaxanthin, and the extraction and separation processes can be combined into one.

Supercritical fluids are a special fluid state of matter. They refer to substances that can be extracted from solids like a gas and dissolve substances like a liquid at temperatures and pressures above the critical point. Supercritical fluid extraction is an environmentally friendly extraction method because when CO2 is used as a supercritical fluid, solvent-free extraction can be achieved. At the same time, adding hydrocarbons such as ethanol or methanol and natural oils to the system can increase the affinity of CO2 for different solutes, thereby increasing the extraction rate of astaxanthin [1 8]. Cheng et al. used low-pressure supercritical CO2 extraction in a microfluidic reactor to extract broken blood cells extracted with supercritical fluid extraction and an ethanol co-solvent in 30 s. The extraction process was monitored in real time using an optical channel. Approximately 98% astaxanthin was rapidly extracted within 30 s using supercritical fluid extraction and an ethanol co-solvent [19].

1.6 Oil extraction method

The oil extraction method is commonly used to extract natural astaxanthin. Sunflower seed oil and coconut oil can extract up to 26.3 μg/g and 24.7 μg/g astaxanthin, respectively[20]. 7 μg/g [20]. Temperature has a significant effect on the extraction of astaxanthin from linseed oil. At high temperatures (60–90 °C), the oil extraction method can obtain a high recovery rate of astaxanthin. However, the higher the temperature, the more unstable astaxanthin is and is prone to degradation. Therefore, it is crucial to choose the appropriate extraction temperature. In addition, when linseed oil contains astaxanthin, the strong antioxidant effect of astaxanthin can significantly reduce the oxidation rate of linseed oil [21].

2. Functional studies of natural astaxanthin powder

Astaxanthin has a special molecular structure and exhibits biological activities including antioxidant, anti-aging and inhibition of chemical mutagenesis. Numerous studies have shown that astaxanthin has potential beneficial effects in the prevention and treatment of tumors, diabetes, cardiovascular disease, eye disease, skin disease, exercise fatigue, and immunity enhancement [22-58].

2.1 Lowering blood pressure

According to statistics, hypertension is the single largest contributor to the global burden of disease and global mortality. Astaxanthin can effectively treat vascular remodeling by inhibiting vascular smooth muscle cell proliferation and restoring mitochondrial function. In vitro, astaxanthin can reduce the proliferation and migration of vascular smooth muscle cells, lower the level of reactive oxygen species in cells, and balance the activity of enzymes related to reactive oxygen species, including reduced nicotinamide adenine dinucleotide phosphate (NADPH) oxidase, xanthine oxidase, and superoxide dismutase. Chen et al. found that astaxanthin can lower blood pressure and reduce vascular remodeling in spontaneously hypertensive rats through serological tests [22]. A diet supplemented with astaxanthin has a therapeutic effect on hypertension by lowering blood pressure, improving cardiovascular remodeling and oxidative stress status [23].

2.2 Anti-aging

Ultraviolet aging is an important factor leading to aging. Ultraviolet rays reach human skin and produce reactive oxygen species and matrix metalloproteinases, which destroy collagen and elastin, cause melanin deposition and produce skin wrinkles [24]. Astaxanthin has been reported to prevent skin thickening and a decrease in collagen protein to combat UV-induced skin damage [25-27] and slow down the physiological changes caused by UV aging [28]. It has been reported that the addition of astaxanthin to the diet can improve the barrier damage and lack of elasticity of the facial skin caused by ultraviolet light aging, and has good tolerance [29].

2.3 Anti-fatigue

Anti-fatigue effects include delaying the onset of fatigue and speeding up recovery from fatigue [30]. Due to their special molecular structure, natural astaxanthin is highly effective in scavenging free radicals, reducing peroxide levels and strengthening the body's antioxidant system [31]. Astaxanthin can cross the blood-brain barrier and protect the brain from both acute injury and chronic neurodegeneration [32]. The neuroprotective properties of astaxanthin are due to its antioxidant, anti-apoptotic and anti-inflammatory effects [33-34].

In the case of oxidative stress caused by strenuous exercise, natural astaxanthin has the effect of counteracting the production of free radicals and accelerating their removal, showing excellent antioxidant effects. Analysis of the correlation between antioxidant and anti-fatigue effects has found that an increase in antioxidant capacity can enhance anti-fatigue capacity, and the two complement each other. Dietary supplementation with astaxanthin can improve lipid metabolism, carbohydrate metabolism and amino acid metabolism, and has a significant effect on scavenging free radicals and reducing muscle damage [35].

2.4 Eye protection

Studies have shown that astaxanthin can reduce the content of retinal protein oxides in the retina of rats through its antioxidant effect, inhibit ischemia-induced retinal cell death, and reduce high blood pressure-induced retinal cell apoptosis, playing a key role in repairing retinal damage [36]. Astaxanthin can therefore play a beneficial role in a variety of eye diseases, including delaying the development of metabolic cataracts [37] and improving tear stability in patients with dry eyes and relieving eye fatigue [38].

The neuroprotective effect of astaxanthin can also be used in the treatment of glaucoma. Elevated intraocular pressure can cause deformation of the sieve plate and disrupt blood flow, leading to loss of axons and apoptosis of retinal ganglion cells, accompanied by typical optic nerve damage [39]. In addition, astaxanthin has good safety and no adverse events have been reported in clinical studies [40-41].

2.5 Boosts immunity

The immune system is highly sensitive to damage caused by free radicals. Astaxanthin not only donates electrons to free radicals, but also binds to them to form harmless compounds, thereby scavenging free radicals or terminating the chain reaction of free radicals and restoring the immune system's defense mechanisms.

To investigate the effect of astaxanthin on the immune system, Park et al. used female domestic cats as a model animal. The study showed that astaxanthin-fed cats had increased proliferation of peripheral blood mononuclear cells and natural killer cell activity [42]. Zhu et al. showed that dietary astaxanthin supplementation improved growth performance, enhanced antioxidant and immune responses, and regulated the expression of relative inflammation-related genes [43]. Jeong et al. confirmed the maturation-inducing and functional-modulating activities of astaxanthin on immune cells, suggesting that the antioxidant effect of astaxanthin may enhance immune system function in cancer therapy [44].

2.6 Anti-diabetic activity

Diabetes is closely related to oxidative stress, which may be the result of increased free radicals, reduced antioxidant defences or both. Generally, the level of oxidative stress in diabetic patients is very high. It is caused by hyperglycaemia, pancreatic β-cell dysfunction and tissue damage [45]. Astaxanthin can lower plasma glucose and insulin levels and improve systemic insulin sensitivity and insulin-stimulated glucose uptake.

Astaxanthin treatment significantly improves glucose tolerance and alleviates pancreatic islet beta cell dysfunction, inhibits dyslipidemia and oxidative stress, increases the activity of antioxidant enzymes, and ultimately improves reproductive outcomes [46]. Astaxanthin is also a promising immunomodulatory agent in the recovery of lymphocyte dysfunction in diabetic rats [47]. The addition of astaxanthin can significantly reduce blood glucose and increase insulin levels in mice due to a high-fat, high-fructose diet [48].

2.7 Antitumor

Astaxanthin can inhibit the tumorigenic activity of stress-induced natural killer cells through its own antioxidant properties. Astaxanthin effectively improves stress-induced immune dysfunction and can even regulate the activity of some genes to inhibit the metastasis of malignant tumors [49]. Faraone et al. showed that astaxanthin induces cell cycle arrest in tumor cells, inhibits tumor metastasis, enhances the sensitivity of tumor cells to chemotherapy, and limits its adverse reactions [50]. Although astaxanthin, canthaxanthin and β-carotene all inhibit tumor growth, astaxanthin has the highest antitumor activity [51].

Astaxanthin modulates immune responses, inhibits cancer cell growth, reduces bacterial load and relieves inflammation of the gastric mucosa, and prevents oxidative stress caused by ultraviolet light [52]. Zhang et al. showed that astaxanthin can inhibit the proliferation and growth [53]. Yasui et al. showed that the pro-tumor necrosis factor and anti-inflammatory factors secreted by astaxanthin can effectively inhibit the growth of colon cancer cells and induce apoptosis of cancer cells [54]. In addition, astaxanthin can effectively prevent stomach cancer and bladder cancer [55], as well as effectively remove free radicals produced in the body by light radiation, reduce photochemical damage to the skin, and prevent skin cancer. Inflammation is an effective means of preventing and treating cancer. In this way, inhibiting the expression of inflammatory cytokines leads to the cessation of the cancerous process [56]. Studies have shown that astaxanthin has a significant inhibitory effect on a variety of cancer cells, possibly due to their anti-inflammatory effects [57-58].

3 Outlook

In summary, astaxanthin is a carotenoid that is a natural antioxidant with good free radical scavenging ability. The excellent biological activity of natural astaxanthin makes it have broad application prospects and huge market potential, especially in the fields of medicine, cosmetics, health care products, aquaculture, feed additives, etc., which have great value for utilization. At present, research on the relationship between astaxanthin and human nutrition and health is relatively late, and it is mainly focused on in vitro or preclinical levels. Therefore, it is urgent to conduct in-depth research on the mechanism of astaxanthin's effect on human nutrition and health, develop related functional foods, health-care cosmetics, pet feeds, etc., and expand the scope of application and market of natural astaxanthin.

Reference:

[ 1 ]Ambati  R   R，Phang   S   M，Ravi  S，et  al.   Astaxanthin：sources，extraction ， stability ， biological    activities     and     its    commercial applications－a review[J] .  Marine Drugs，201 4，1 2：1 28 －1 52 .

[2]Liu X B，Osawa T.  Cis astaxanthin and especially 9 cis astaxanthin exhibits a higher antioxidant  activity  in vitro  compared  to  the  all trans isomer   [  J  ] . Biochemical and Biophysical Research Communications，2007，357（1 ）：1 87 －1 93 .

[3] Peng  J，Yuan  J  P，Wang  J  H.   Effect  of  diets supplemented  with different  sources   of  astaxanthin on the gonad of the sea urchin Anthocidaris crassispina[J] .  Nutrients，201 2，4（1 2）：922－934 .

[ 4 ] Nagendraprabhu  P，Sudhandiran   G.   Astaxanthin  inhibits  tumor invasion by  decreasing  extracellular  matrix  production  and  induces apoptosis in experimental rat colon carcinogenesis by modulating the expressions of ERK－2，NFkB and COX－2[J] .  Investigational New Drugs，2011,29（2）:207－224 .

[5] Pashkow F J，Watumull  D  G，Campbell  C  L.   Astaxanthin：a  novel potential   treatment  for oxidative stress and inflammation in cardiovascular disease[ J] .   American  Journal  of  Cardiology，2008， 1 01（1 0A）：58D－68D.

[6]Fassett R G，Coombes J S.  Astaxanthin in cardiovascular health and disease[J] .  Molecules，201 2，1 7：2030－2048 .

[7]Visioli  F，Artaria   C.   Astaxanthin   in   cardiovascular   health   and disease：mechanisms of action，therapeutic merits，and knowledge gaps [J] .  Food ＆ Function，201 6，8（1 ）：39－63 .

[8]Uchiyama K，Naito Y，Hasegawa G，et al.  Astaxanthin protects  β-  cells against  glucose  toxicity in  diabetic   db／db  mice [ J] .    Redox Report，2002，7（5）：290－293 .

[9]Jyonouchi H，Sun S，Iijima K，et al.  Antitumor activity of astaxanthin and its mode of action[J] .  Nutrition and Cancer，2000，36（1 ）：59 -  65 .

[1 0]Ruen－ngam D，Shotipruk A，Pavasant P.  Comparison of extraction methods  for  recovery  of astaxanthin   from  Haematococcus  pluvialis [J] .  Separation Science and Technology，201 0，46（1 ）：64－70 .

[ 1 1 ] Sachindra  N   M，Bhaskar   N，Mahendrakar N S. Recovery   of carotenoids  from   shrimp   waste   in   organic   solvents  [ J] .    Waste Management，2006，26（1 0）：1 092 －1 098 .

[1 2] Saini  R K，Keum Y  S.   Carotenoid  extraction  methods：a review of recent developments[J] .  Food Chemistry，2017,240：90 －1 03 .

[1 3]Rammuni MN，Ariyadasa TU，Nimarshana PHV，et al.  Comparative assessment on the extraction of carotenoids  from microalgal sources:astaxanthin from H.pluvialis  and β-carotene from D.  salina[J] .  Food Chemistry，2019，277：128-134 .

[1 4]Zou T B，Jia  Q，Li  H  W，et al.   Response  surface  methodology  for ultrasound －assisted  extraction  of  astaxanthin  from  Haematococcus pluvialis[J] .  Marine Drugs，201 3，1 1（5）：1 644 －1 655 .

[1 5]Rao   A   R ，Sarada    R ，Shylaja   M    D ，et    al.    Evaluation    of

hepatoprotective    and    antioxidant    activity    of    astaxanthin     and astaxanthin esters  from  microalga － Haematococcus  pluvialis [ J] .  Journal of Food  Science  and Technology，201 5，52（ 1 0）：6703 -  671 0 .

[1 6]Holtin K，Kuehnle M，Rehbein J，et al.  Determination of astaxanthin

and astaxanthin esters in the microalgae Haematococcus pluvialis by LC-（ APCI）MS  and  characterization  of  predominant carotenoid isomers by  NMR  spectroscopy [ J] .  Analytical  and  Bioanalytical Chemistry，2009,395（6）：1613 -1 622 .

[1 7]Su  F ，Xu   H   R ，Yang  N ，et    al.    Hydrolytic   efficiency  and isomerization during de －esterification of natural  astaxanthin  esters by  saponification   and   enzymolysis [ J ] .     Electronic   Journal   of Biotechnology，201 8，34：37－42 .

[1 8]Slack G C，McNair H M，Hawthorne S B，et al.  Coupled solid phase extraction   －   supercritical    fluid     extraction     on    －   line    gas chromatography of explosives from water[J] .   Journal of Separation Science，201 5，1 6（8）：473－478 .

[1 9]Cheng X，Qi Z B，Burdyny T，et al.  Low pressure supercritical CO2  extraction of astaxanthin from Haematococcus pluvialis demonstrated  on a  microfluidic  chip [ J] .Bioresource Technology，201 8，250：481 －485 .

[20]Sachindra   N   M ，Mahendrakar   N    S.    Process    optimization   for extraction of carotenoids from shrimp waste with vegetable oils[J] . Bioresource Technology，2005，96（1 0）：1 1 95 －1 200 .

[21 ] Pu  J  N，Bechtel P J，Sathivel  S.   Extraction  of shrimp  astaxanthin with   flaxseed    oil ：effects   on    lipid    oxidation    and   astaxanthin degradation rates[ J] .   Biosystems  Engineering，201 0，1 07：364 -  371 .

[22] Chen Y Q，Li S，Guo Y X，et al.  Astaxanthin attenuates hypertensive vascular remodeling by protecting vascular smooth muscle cells from oxidative stress －induced mitochondrial dysfunction[J] .  Oxidative Medicine and，Cellular Longevity，2020，2020：1 －1 9 .

[23]Monroy－Ruiz J，Sevilla M，Carrón R，et al.  Astaxanthin －enricheddiet reduces blood pressure and improves cardiovascular parameters  in spontaneously hypertensive rats[J] .  Pharmacological Research， 201 1 ，63（1 ）：44－50 .

[24]Yi X W，Xu W，Zhou H H，et al.  Effects of dietary astaxanthin and xanthophylls on  the  growth and  skin pigmentation of  large yellow croaker Larimichthys  croceus[ J] .   Aquaculture，201 4，433：377  -  383 .

[25]Liu X J，Chen  X  F，Liu  H，et  al.   Antioxidation  and  anti  －aging activities    of    astaxanthin    geometrical  isomers and molecular mechanism  involved in Caenorhabditis  elegans[ J].Journal   of Functional Foods，201 8，44：1 27 －1 36 .

[26]Rao A R，Sindhuja H N，Dharmesh S M，et al.  Effective inhibition  of skin cancer，tyrosinase，and antioxidative properties by astaxanthin  and astaxanthin  esters from  the  green  alga  Haematococcus pluvialis  [J] .  Journal  of Agricultural  and  Food  Chemistry，201 3，61（1 6）： 3842－3851 .

[27] Hama  S，Takahashi  K，Inai  Y，et  al.  Protective effects of  topical application  of  a   poorly   soluble  antioxidant  astaxanthin  liposomal formulation on  ultraviolet  －induced  skin  damage [ J] .   Journal of Pharmaceutical Sciences，201 2，1 01（8）：2909－291 6 .

[28]Santos S D，Cahú T B，Firmino G O，et al.  Shrimp waste extract and astaxanthin ： rat    alveolar     macrophage ， oxidative     stress     and inflammation[J] .  Journal of Food  Science，201 2，77（7）：H1 41  -  H1 46 .

[29] Yoon  H  S，Cho  H H，Cho  S，et al.    Supplementing  with  dietary astaxanthin  combined   with   collagen   hydrolysate   improves   facial elasticity  and   decreases   matrix   metalloproteinase  － 1    and  － 1 2 expression：a   comparative   study   with   placebo  [ J ] .    Journal   of Medicinal Food，201 4，1 7（7）：81 0－81 6 .

[30] Jin  H  M，Wei  P.   Anti －fatigue  properties of  tartary buckwheat  extracts in mice[J] .  International Journal of Molecular Sciences， 201 1 ，1 2：4770－4780 .

[31 ] Lorenz R T，Cysewski G R.  Commercial potential for Haematococcus microalgae  as  a  natural   source   of  astaxanthin  [ J ] .    Trends   in Biotechnology，2000，1 8（4）：1 60 －1 67 .

[32]Shen H，Kuo C C，Chou J，et al.  Astaxanthin reduces ischemic brain injury in adult rats[J] .  Faseb Journal，2009，23（6）：1 958 －1 968 .

[33]Zhang   X    S ，Zhang    X ， Wu    Q ， et    al.     Astaxanthin    offers neuroprotection   and   reduces   neuroinflammation in experimental subarachnoid hemorrhage [ J] .   The  Journal  of  Surgical  Research， 201 4，1 92（1 ）：206－21 3 .

[34] Zhang X  S，Zhang  X，Zhou  M  L，et  al.   Amelioration  of  oxidative stress and protection  against early brain  injury by  astaxanthin  after experimental     subarachnoid     hemorrhage     [  J   ] .      Journal      of

Neurosurgery，201 4，1 21（1 ）：42－54 .

[35]Polotow T  G，Vardaris  C  V，Mihaliuc  A  R，et  al.   Astaxanthin supplementation   delays   physical   exhaustion   and   prevents   redox imbalances  in   plasma   and   soleus   muscles   of  wistar   rats  [ J ] .Nutrients，201 4，6：581 9－5838 .

[36] Cort A，Ozturk N，Akpinar D，et al.  Suppressive effect of astaxanthin on  retinal  injury  induced  by  elevated  intraocular  pressure  [ J] . Regulatory Toxicology and Pharmacology，201 0，58（1 ）：1 21 －1 30 .

[37]Yang M，Chen Y，Zhao T，et al.  Effect of astaxanthin on metabolic cataract in rats with type 1  diabetes mellitus[J] .  Experimental and Molecular Pathology，2020，1 1 3：1 04372 .

[38] Giannaccare G，Pellegrini M，Senni C，et al.  Clinical applications of astaxanthin  in  the  treatment of ocular diseases：emerging  insights [J] .  Marine Drugs，2020，1 8（5）：239 .

[39] Floriani I，Quaranta L，Rulli E，et al.  Health－related quality of life  in  patients   with   primary   open － angle    glaucoma.    An   Italian  multicentre observational  study[ J] .   Acta  Ophthalmologica，201 6， 94（5）：e278 －e286 .

[40] Davinelli S，Nielsen M E，Scapagnini G.  Astaxanthin in skin health， repair，and disease：a comprehensive review[J] .  Nutrients，201 8，1 0（4）：522 .

[41 ]Higuera－Ciapara   I ，Félix  － Valenzuela   L ，Goycoolea    F   M.  Astaxanthin：a review of its chemistry and  applications[J] .  Critical Reviews in Food Science and Nutrition，2006，46（2）：1 85 －1 96 .

[42]Park J S，Mathison B D，Hayek M G，et al.  Astaxanthin stimulates  cell － mediated   and   humoral   immune   responses   in  cats [ J ] .   Veterinary  Immunology  and  Immunopathology，201 1 ，1 44（3／4 ）： 455－461 .

[43]Zhu XM，Li MY，Liu X Y，et al.  Effects of dietary astaxanthin on growth，blood  biochemistry，antioxidant，immune  and  inflammatory response  in  lipopolysaccharide - challenged  Channa  argus [ J] .  Aquaculture Research，2020，51（5）:1 980-1 991 .

[44]Jeong S M，Kim Y J.  Astaxanthin treatment induces maturation and functional change of myeloid －derived suppressor cells in tumor - bearingi Antioxidants，2020，9：350 .

[45]Leite M F，de Lima A，Massuyama M M，et al.  In vivo astaxanthin treatment  partially  prevents  antioxidant  alterations  in   dental   pulp from alloxan －induced  diabetic  rats[ J] .   International  Endodontic Journal，201 0，43（1 1 ）：959－967 .

[46] Chen  Y  Y，Tang  J  C，Zhang Y  H，et al.  Astaxanthin  alleviates  gestational diabetes mellitus in mice through suppression of oxidative  stress[ J] .   Naunyn － Schmiedeberg's  Archives  of  Pharmacology， 2020，393：251 7－2527 .

[47] Otton R，Marin D P，Bolin A P，et al.  Astaxanthin ameliorates the redox imbalance in lymphocytes of experimental  diabetic  rats[ J] .

Chemico －Biological Interactions，201 0，1 86（3）：306－31 5 .

[48] Bhuvaneswari  S，Arunkumar  E，Viswanathan  P，et  al.   Astaxanthin restricts weight  gain，promotes  insulin  sensitivity  and curtails  fatty liver disease in mice fed  an  obesity －promoting  diet [ J] .   Process Biochemistry，201 0，45（8）：1 406 －1 41 4 .

[49]Kurihara   H ，Koda   H ，Asami    S ，et   al.     Contribution   of   the antioxidative property  of  astaxanthin  to  its  protective  effect on the promotion of cancer metastasis  in  mice  treated  with  restraint  stress [J] .  Life Sciences，2002，70（21 ）：2509－2520 .

[50] Faraone  I，Sinisgalli  C，Ostuni  A，et  al.    Astaxanthin  anticancer  effects  are   mediated   through   multiple   molecular   mechanisms：a  systematic    review    [  J  ] .      Pharmacological     Research ， 2020， 1 55：1 04689 .

[51 ]Palozza P，Torelli C，Boninsegna A，et al.  Growth－inhibitory effects of the  astaxanthin － rich  alga  Haematococcus  pluvialis   in  human colon cancer cells[J] .  Cancer Letters，2009，283（1 ）：1 08 －1 1 7 .

[52] Park  J  S，Chyun  J  H，Kim  Y  K，et  al.  Astaxanthin  decreased oxidative stress and inflammation and enhanced immune response in humans[J] .  Nutrition ＆ Metabolism，201 0，7：1 8 .

[53]Zhang X，Zhao W E，Hu L Q，et al.  Carotenoids inhibit proliferation and   regulate   expression  of   peroxisome   proliferators － activated

receptor gamma（ PPARγ) in  K562  cancer  cells[ J] .   Archives  of Biochemistry and Biophysics，201 1 ，51 2（1 ）：96 －1 06 .

[54]Yasui Y，Hosokawa M，Mikami N，et al.  Dietary astaxanthin inhibits colitis  and  colitis － associated  colon  carcinogenesis  in  mice  via modulation of the inflammatory cytokines[J] .  Chemico －Biological Interactions，201 1 ，1 93（1 ）：79 －87 .

[55]Bowen J，Soutar C，Serwata R D，et al.  Utilization of（3S，3 ′S）-  astaxanthin    acyl esters  in  pigmentation of rainbow trout（Oncorhynchus mykiss）[J] .   Aquaculture  Nutrition，2002，8（ 1 ）： 59－68 .

[56] Zare  M，Roshan  Z  N，Assadpour  E，et al.  Improving the  cancer prevention／treatment  role   of  carotenoids   through   various  nano  -  delivery  systems  [ J ] .    Critical   Reviews   in  Food  Science  and Nutrition，2021 ，61（3）：522－534 .

[57] Gong  X  M，Smith J R，Swanson  H  M，et  al.    Carotenoid  lutein selectively  inhibits  breast   cancer  cell   growth  and  potentiates  the effect   of    chemotherapeutic    agents    through     ROS   －  mediated mechanisms[J] .  Molecules，201 8，23（4）：905 .

[58] Tanaka  T，Shnimizu  M，Moriwaki  H.   Cancer  chemoprevention by carotenoids[J] .  Molecules，201 2，1 7（3）：3202－3242 .
